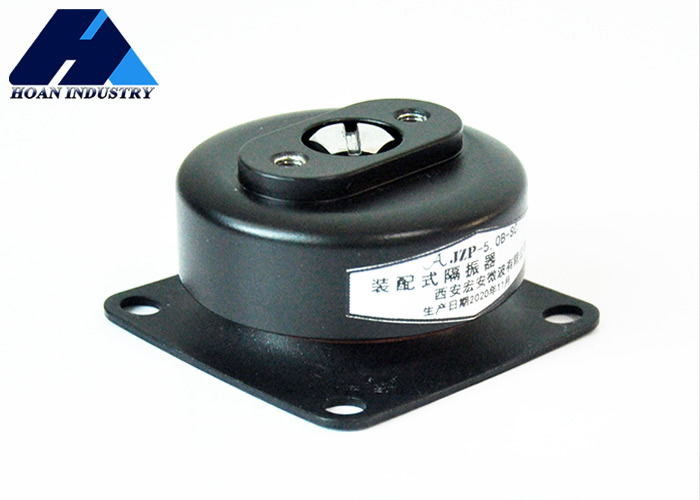

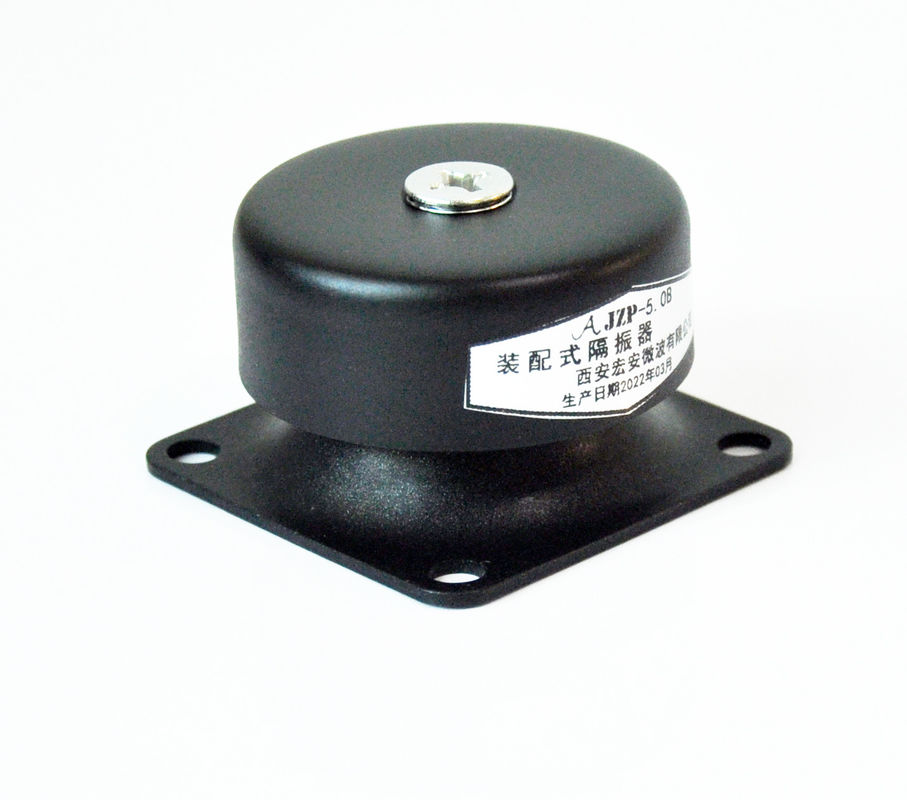

Name: JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.5B-SC
Availability: InStock

Zu Hause > produits > Gummistoßdämpfer >

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

Herkunftsort:

China

Markenname:

Hoan

Modellnummer:

JZP-2.5B-SC

Kontakt mit uns

Bitte um ein Angebot

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

Einzelheiten zum Produkt

Besonderheit:

Vibrationsisolation

Montageart:

Gewinde

Installationsmethode:

Einschrauben

Resonanzfrequenz:

5-10Hz

Kompatibilität:

Universal

Farbe:

Schwarz

Kompression:

Maßgeschneidert

Resonanzfrequenz:

30 Hz

Vibrationsisolation:

Bis zu 90%

Anwendung:

Automobilindustrie, Maschinenindustrie und Industrieausrüstung

Relatives Produkt:

Backdraft -Dämpfer

Hervorheben:

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

Zahlungs- und Versandbedingungen

Min Bestellmenge

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Verwandte Produkte

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Beste Preis erhalten

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Beste Preis erhalten

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Beste Preis erhalten

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Beste Preis erhalten

Kontakt mit uns

86-29-88292913

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

JZP-B-SC Series Rubber Shock Absorber for On-Vehicle Electronic Equipment

Redefine the Stable Foundation for On-Vehicle Electronic Equipment

Xi'an Hoan's JZP Series Vibration Isolators provide unmatched stability for sophisticated electronic equipment in special-purpose vehicles, including emergency rescue, mobile broadcasting, military communication, and environmental monitoring platforms.

Advanced Vibration Isolation Technology

Breaks the fatal energy transmission path of traditional rigid connections
Modular structure with high-performance elastic damping materials
Creates a low-pass filter effect for near-static microenvironment
Prevents loose screws, solder joint cracks, and component failure

Precision Design for Broad Applications

The JZP Series offers multiple models with varying load-bearing capacities and natural frequencies to precisely match equipment requirements, from lightweight data collectors to heavy cabinet-type servers.

Simple modular installation requiring no complex tools
Rapid deployment on vehicle chassis or brackets
Improves equipment integration efficiency and reliability

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration Performance

Impact Performance
