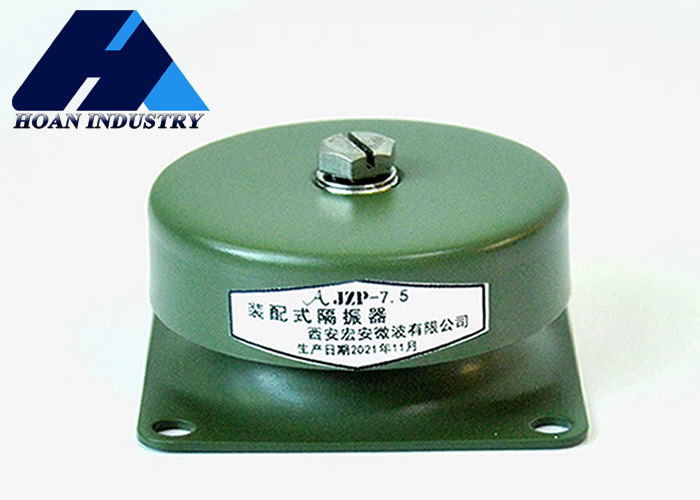

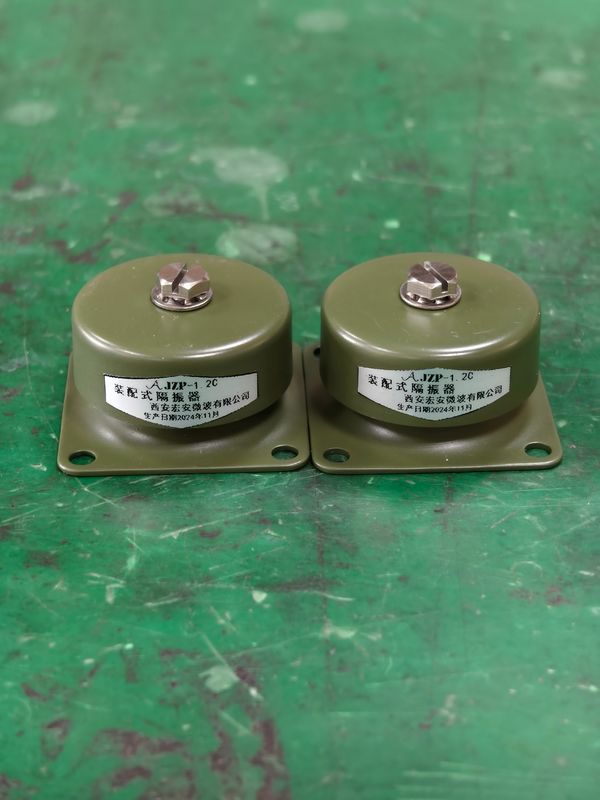

Name: JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-4.0B-SC
Availability: InStock

Zu Hause > produits > Gummistoßdämpfer >

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Herkunftsort:

China

Markenname:

Hoan

Modellnummer:

JZP-4.0B-SC

Kontakt mit uns

Bitte um ein Angebot

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Einzelheiten zum Produkt

Merkmal:

breite Arbeitsfrequenz, lange Lebensdauer

Langlebigkeit:

Lang anhaltende

Ursprungsland:

China

Verwendung:

Absorbiert Stoß und Vibrationen

Material:

Gummi

Geräuschreduzierung:

Wirksam bei der Lärmreduzierung

Maschinenprüfbericht:

Nicht verfügbar

Härte:

Maßgeschneidert

Druckfestigkeit:

Hoch

Höhe:

30 mm

Widerstand:

Chemikalien, Hitze und Wetter

Vibrationsisolationstyp:

Passiv

Kosten:

Erschwinglich

Montagelöcher:

Hervorheben:

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Zahlungs- und Versandbedingungen

Min Bestellmenge

Zahlungsbedingungen

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Verwandte Produkte

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Beste Preis erhalten

JZP-5.0B-SC Gummi-Stoßdämpfer mit 10 Hz bis 100 Hz Frequenzbereich, hohe Vibrationsbeständigkeit für die Effizienzvalidierung im Fahrzeug, neues Produkt 2025

Beste Preis erhalten

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Beste Preis erhalten

JZP-3.5B-SC Modularer Stoßdämpfer aus Gummi mit 5-6 kg Belastungsbereich 1:2 Kompressionsverhältnis und Stoßfestigkeit 40 g/11 ms

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

JZP-4.0B-SC The Flexible Adaptability of Rubber Shock Absorber for Vibration Isolation Solutions

JZP-B-SC Series

Customized Vibration Isolation Solutions

While standardized products meet most requirements, specialized equipment with unique specifications or extreme performance demands require customized protection. Xi'an Hoan Microwave Co., Ltd. designed the JZP Series with powerful customization capabilities to deliver tailored vibration isolation solutions.

From Product to Solution

Xi'an Hoan provides comprehensive consulting services, analyzing equipment specifications including weight, dimensions, center of gravity, sensitive frequency bands, and operating environment. Engineers optimize selections from the JZP Series or modify existing structures with adjustments to:

Mounting hole positions
Interface types
Load-bearing stiffness

Specialized Applications

For precision instruments (electron microscopes, spectral analyzers) or heavy equipment (large battery packs, hydraulic units), Xi'an Hoan develops specialized models featuring:

Custom damping material formulations
Multi-stage vibration isolation structures
Active/semi-active control technologies

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact
