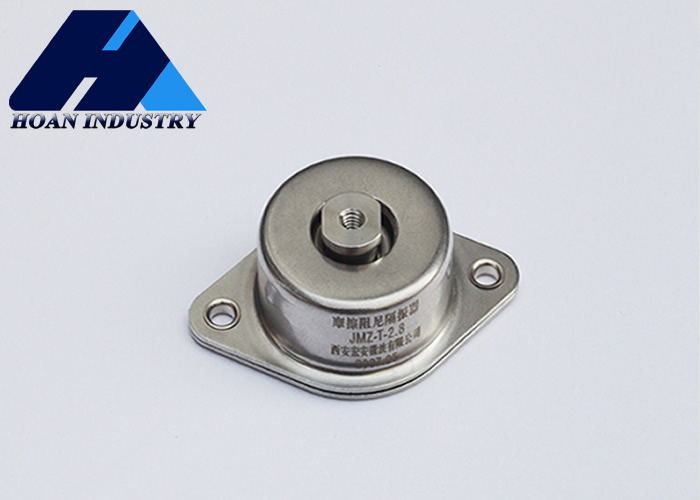

Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

Zu Hause > produits > Federisolator >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Herkunftsort:

CHINA

Markenname:

Hoan

Modellnummer:

JMZ-T-2.6

Kontakt mit uns

Bitte um ein Angebot

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Einzelheiten zum Produkt

Verfügbarkeit:

Weit verbreitet

Product_name:

Federisolator

Gesamtbreite:

60 mm

Installationsmethode:

Montiert oder eingebettet

Montagetyp:

Kopfplatte

Struktur:

Helikal

Wartung:

Niedrige Wartung

Stoßwiderstand:

Stark

Typ:

Vibrationsisolator

Nach Garantiedienst:

Online -Support

Maschinen -Testbericht:

Nicht verfügbar

Garantie:

1 Jahr

Designstil:

Industriell

Zertifizierungen:

UL-Liste, RoHS-konform

Anwendungen:

Industriemotorenhalterungen

Hervorheben:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Zahlungs- und Versandbedingungen

Min Bestellmenge

Zahlungsbedingungen

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Verwandte Produkte

86-29-88292913

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications
