Name: JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.45
Availability: InStock

Zu Hause > produits > Federisolator >

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Herkunftsort:

CHINA

Markenname:

Hoan

Modellnummer:

JMZ-T1-0.45

Kontakt mit uns

Bitte um ein Angebot

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Einzelheiten zum Produkt

Farbe:

Silber

Nach Garantiedienst:

Online -Support

Montageorientierung:

Vertikal

Form:

Zylindrisch

Widerstandsfähigkeit:

Hoch

Betriebstemperatur:

0-150 ° F.

Zustand:

Neu

Geräuschreduzierung:

Wirksam

Material:

Verzinkter Stahl

Garantie:

1 Jahr

Isolationseffizienz:

Bis 95%

Haltbarkeit:

Lang anhaltende

Installationsmethode:

Montiert oder eingebettet

Gesamtbreite:

32 mm

Anpassung:

Auf Anfrage verfügbar

Hervorheben:

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Zahlungs- und Versandbedingungen

Min Bestellmenge

Zahlungsbedingungen

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Verwandte Produkte

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Beste Preis erhalten

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Beste Preis erhalten

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Beste Preis erhalten

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Beste Preis erhalten

Kontakt mit uns

86-29-88292913

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

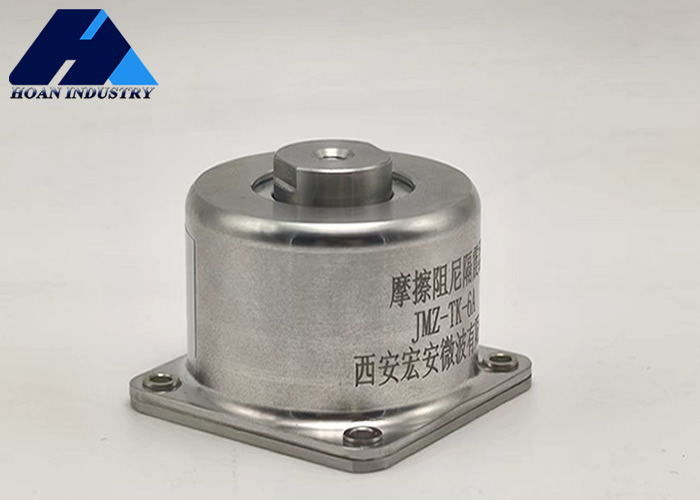

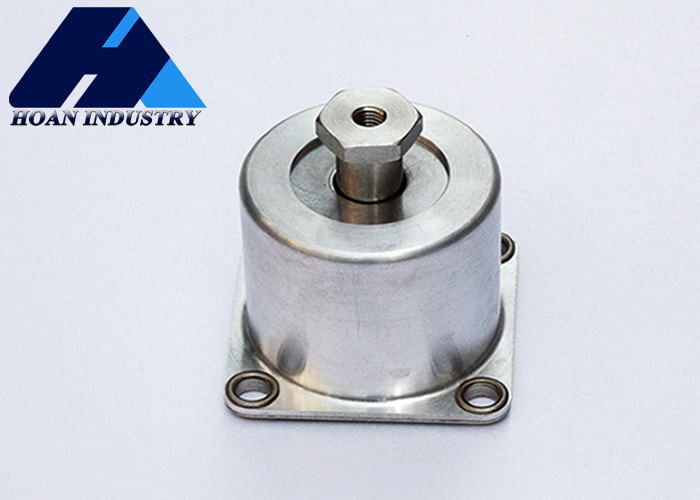

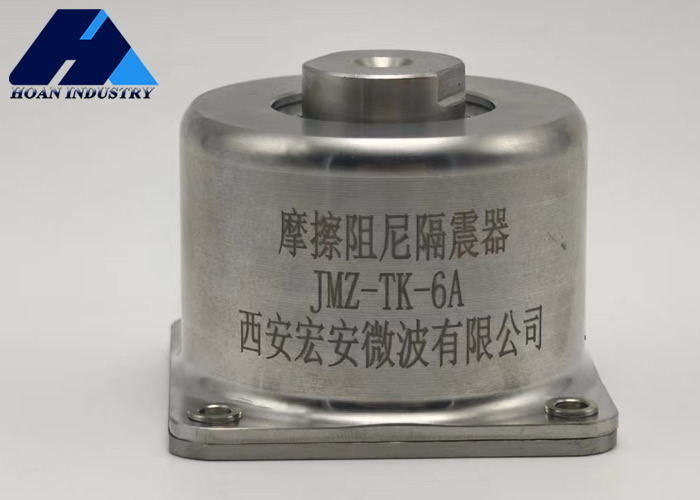

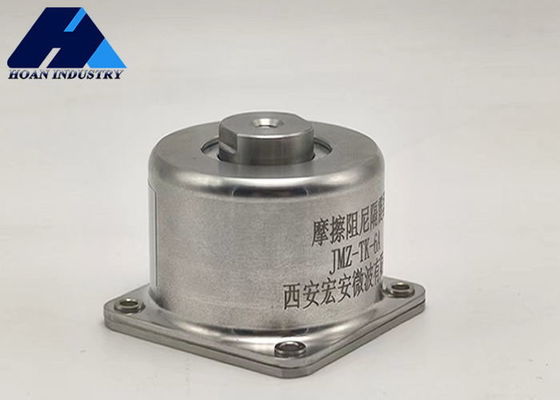

JMZ-T1-0.45 Friction Damping Vibration Isolators

Performance Multiplier for Precision Equipment

The JMZ-T1 Series friction damping vibration isolators from Xi'an Hoan Microwave go beyond basic vibration isolation to become true performance enhancers for your equipment. These isolators provide the environmental stability required for ultra-high-precision applications.

Key Benefits

Extremely low natural frequency for superior vibration isolation
High-efficiency damping reduces vibration interference below theoretical limits
Effectively suppresses self-generated vibrations from internal moving components
Enhances measurement accuracy by an order of magnitude
Improves product yield and shortens R&D cycles

Ideal Applications

Scanning Electron Microscopes (SEMs), Lithography Machines, Atomic Force Microscopes (AFMs), and other precision equipment requiring ultimate stability.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
